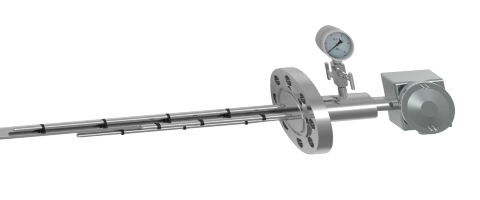

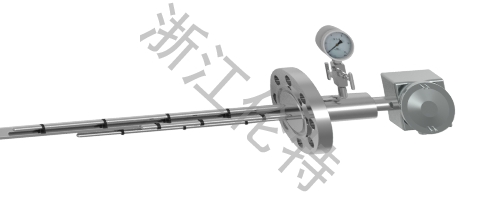

It is suitable for temperature measurement inside various reactors, especially hydrogenation reactors, with multiple independent casings fixed with T-beam brackets to prevent casing from bending, and equipped with sealing chambers and leakage detection pressure gauges.
Product Overview
Hydrogenation reactor
? The thermowell is fixed to the T-beam bracket to prevent the sleeve from bending.
? The thermowell is in full contact with the medium, with fast response and high precision.
? The product uses three different sealing methods and a four-layer leak-proof structure.
? With pressure gauge or pressure sensor for detection.
| Graduation | Type K/E |
|---|---|
| Sheath material | 347SS |
| Thermowell material | 347SS |
| Pressure grade | 900LB 1500LB 2500LB |
| Sealing structure | Three layer sealed structure |
